Q-SYS Scheduling Panel
QSP-11
The Q-SYS Scheduling Panel is built on the Microsoft Device Ecosystem Platform (MDEP), as a Microsoft Teams Panel. Displaying meeting details, availability, and allowing users to reserve meeting spaces on the spot.
功能和优点

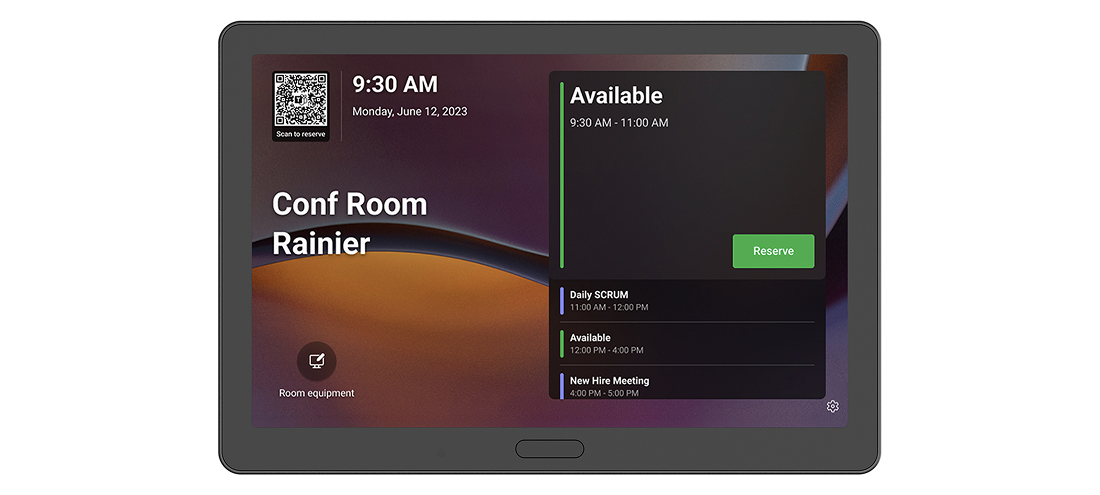

- Large, 10.9-inch touchscreen optimized for usability and high visibility
- 1920 x 1200 resolution
- Anti-fingerprint, anti-glare screen

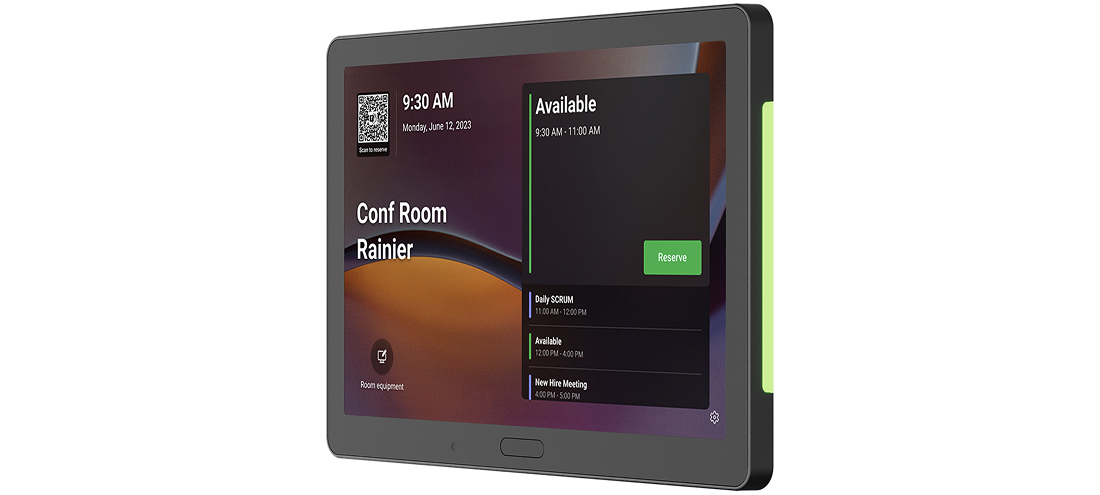

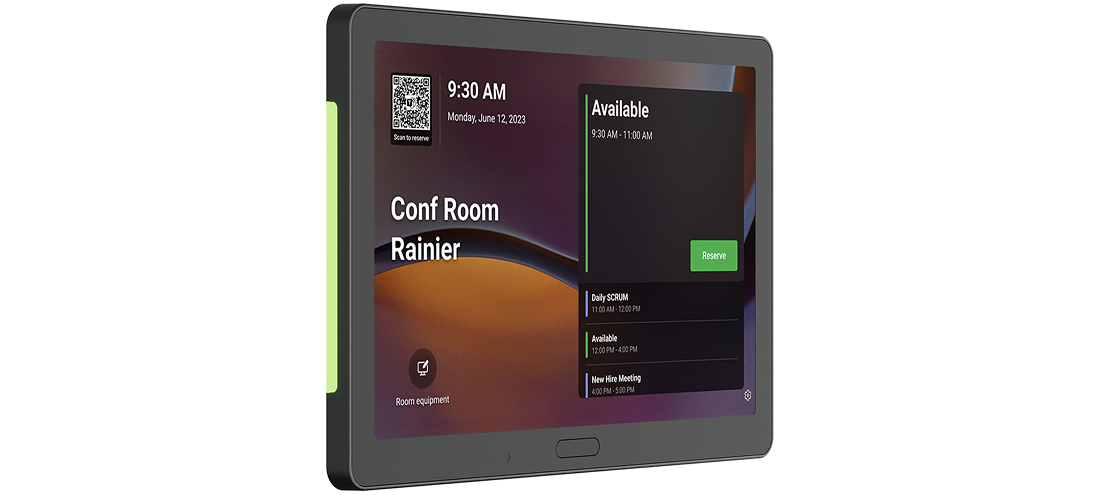

- Illuminated side LEDs represent status, such as available, in-use, or requires cleaning
- Easy to install anywhere simple room booking is needed
- PoE 802.3af powered
- Flexible mounting options
- Wi-Fi for wireless connectivity when wiring is not possible (requires DC power supply accessory)
Built for Microsoft Teams: The Q-SYS Scheduling Panel is built on the Microsoft Device Ecosystem Platform (MDEP) and delivers consistent experiences, improved performance, and simplified deployment.
Integrate with Q-SYS Reflect: The Q-SYS Scheduling Panel connects to Q-SYS Reflect, a cloud-based monitoring and management tool that ties together every Q-SYS System across your high-performance workplace organization, including RoomSuite spaces, high-impact spaces, and communal areas, providing system administrators with real-time actions and insights.

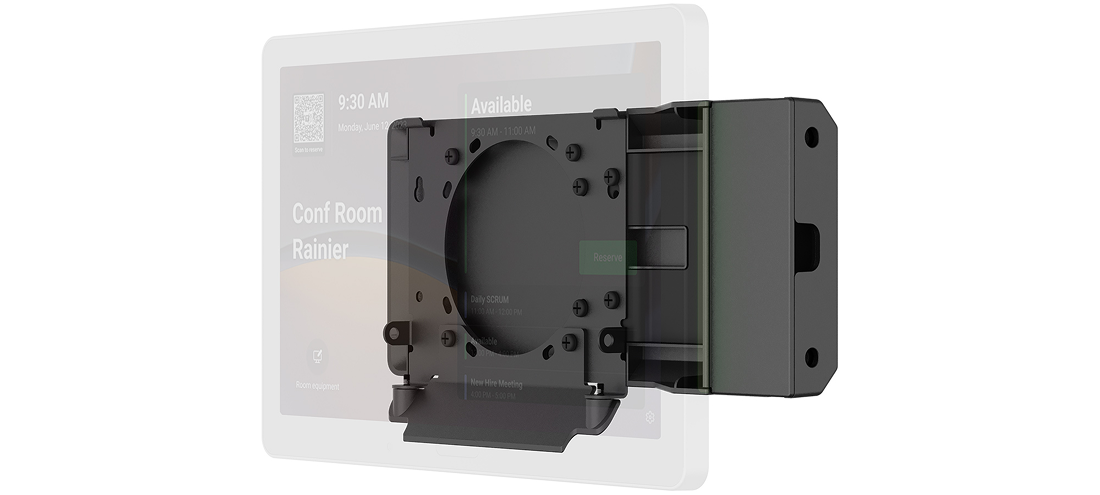

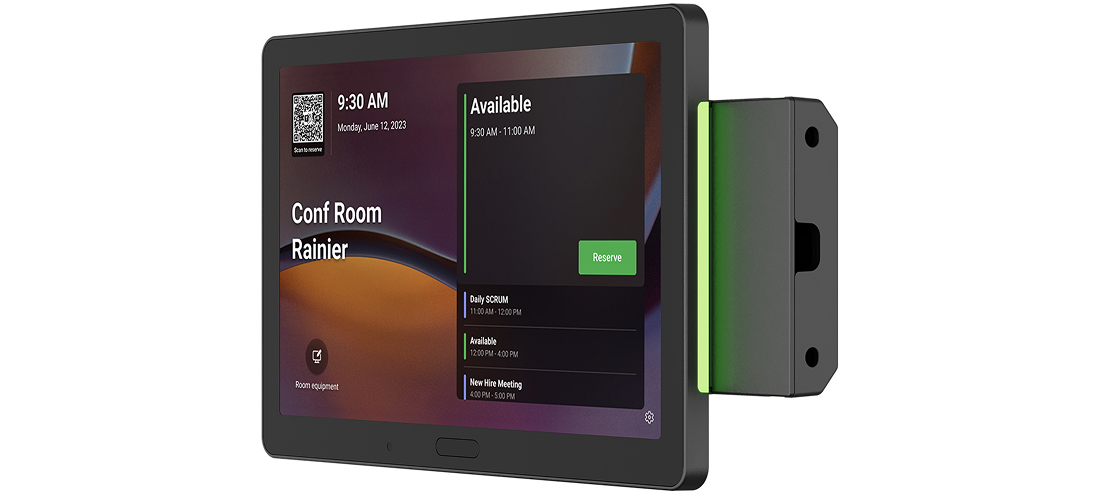

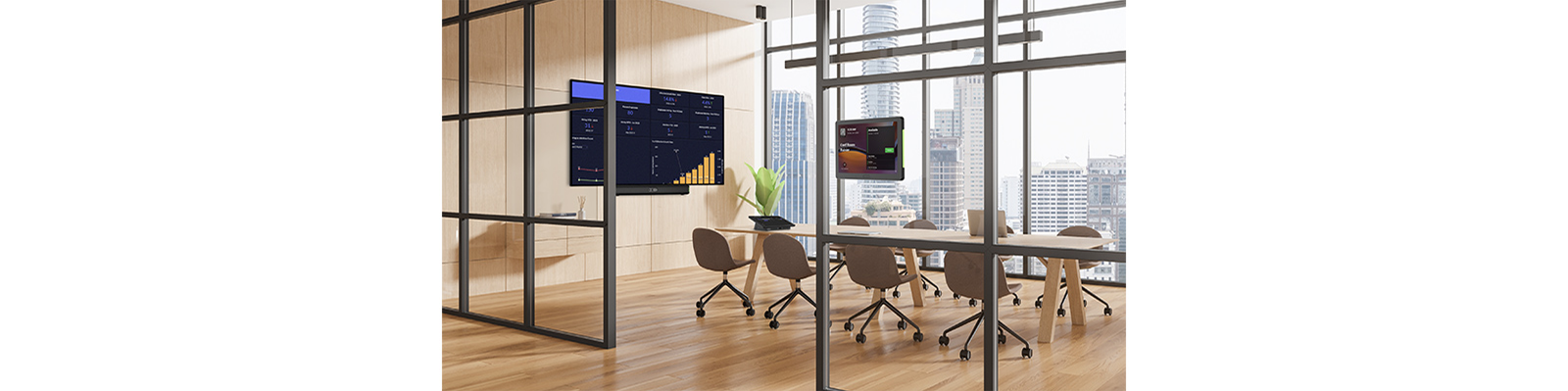

Mounting options for any space: The Q-SYS Scheduling Panel can be easily installed on conference room exteriors, walls, or glass. A surface mount is included, with an optional kit for glass and mullion installation.
规格
| Model | Q-SYS Scheduling Panel (QSP-11) | ||
| 详细参数 | |||
| Operating System | Android 15 (MDEP-compliant for Teams Panel) | ||
| Screen size | 10.95 in (278 mm) | ||
| 分辨率 | 1920 x 1200, 16:10, ~206 dpi | ||
| 亮度 | 350 nits (typical) | ||
| MTR Teams Panel Capabilities | Room Status: At-a-glance free/busy RGB lightbars Actions: Reserve now, check-in, view schedule, extend, release Wayfinding: Room search and directions (per Teams Panel feature support) Management: Teams Admin Center for enrollment, configuration and updates | ||
| Touch & sensors | |||
| Touch type | Projected capacitive multi-touch | ||
| Surface | Anti-glare, oleophobic | ||
| Motion sensor | Human presence/proximity (auto wake-up) | ||
| Status indicators | Dual RGB side lightbars, front-visible, side-visible, rear-visible through glass | ||
| 安装方式 | |||

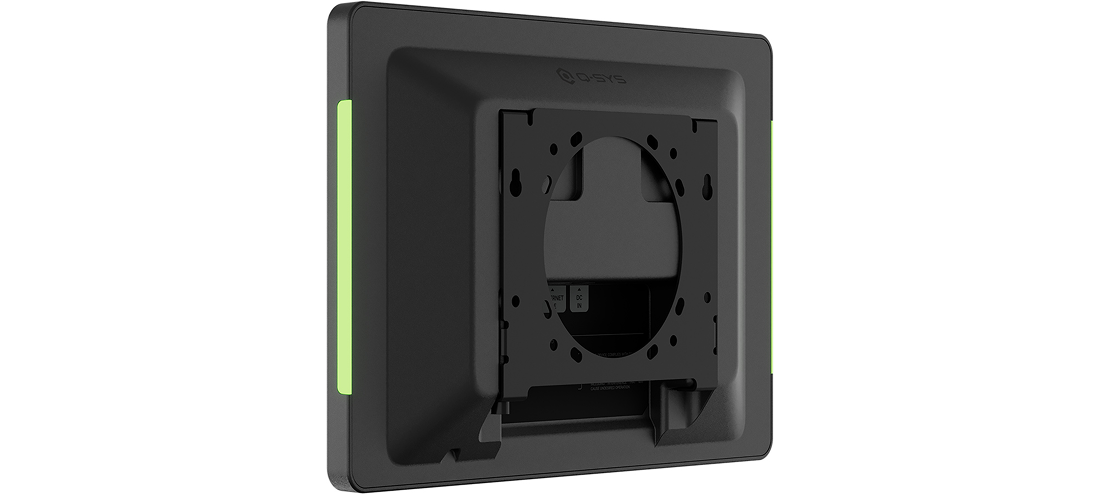

| Wall mount | Included | ||

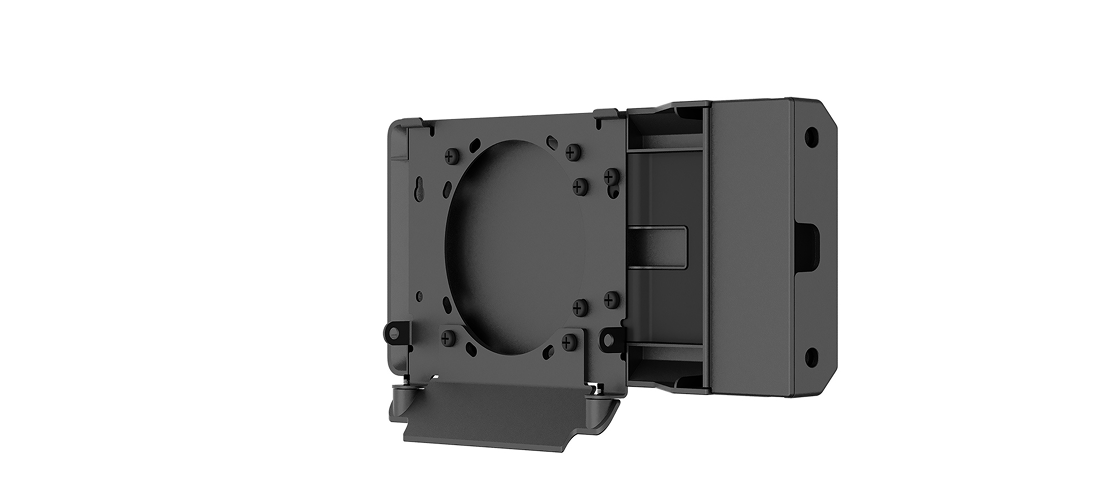

| Glass/mullion mounting kit | Optional (sold separately) | ||
| Orientation | Auto-rotate (orientation lock supported) | ||

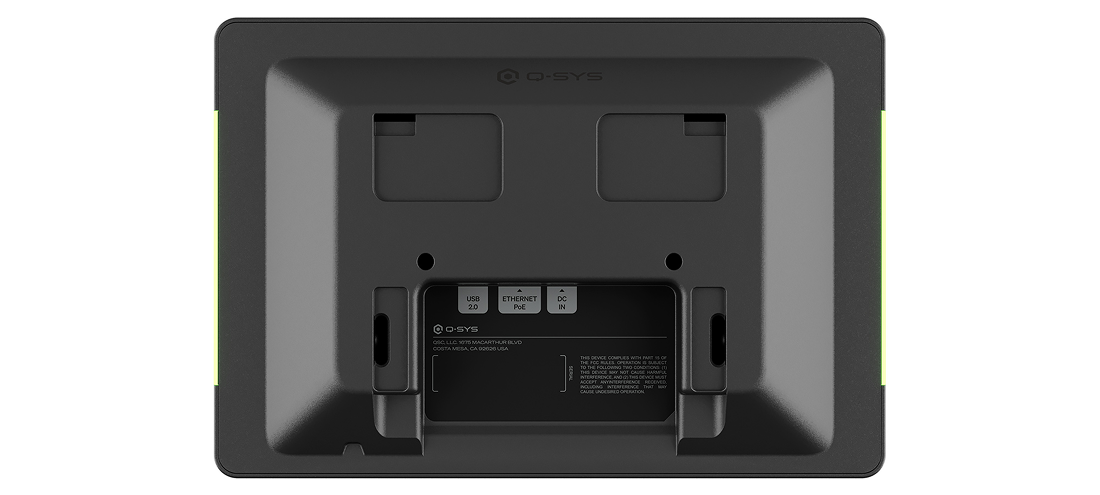

| Power and connectivity | |||
| RJ-45 (PoE) | 1 Gbps Ethernet, 802.3af PoE PSE | ||
| Wi-fi | 802.11 a/b/g/n/ac; 2.4/5 GHz; disabled by policy if required | ||
| 蓝牙 | Bluetooth 5.0 (BR/EDR + LE); peripheral pairing as allowed by Microsoft Teams/MDEP | ||
| DC input | Optional (12 V DC power supply accessory with regional plug (36W-DC-PSU) sold separately) | ||
| USB-C | USB-C service/debug port; up to 5 V / 1 A device power support during service | ||
| 物理 | |||
| 产品尺寸（长 x 宽 x 高） | 10.4 x 7.1 x 1.2 in (264 x 180.9 x 30.0 mm) | ||
| Product Weight | 1.6 lbs (0.7 kg) | ||
| 环境与安全 | |||
| 存储温度范围 | -4°到158° F（-20°到70° C） | ||
| 工作温度范围 | 50° to 95° F (10° to 35° C) | ||
| Operating & storage humidity range | 5%到85%相对湿度，无冷凝 | ||
