A Windows-based solution that quickly scales and deploys across your collaboration spaces.

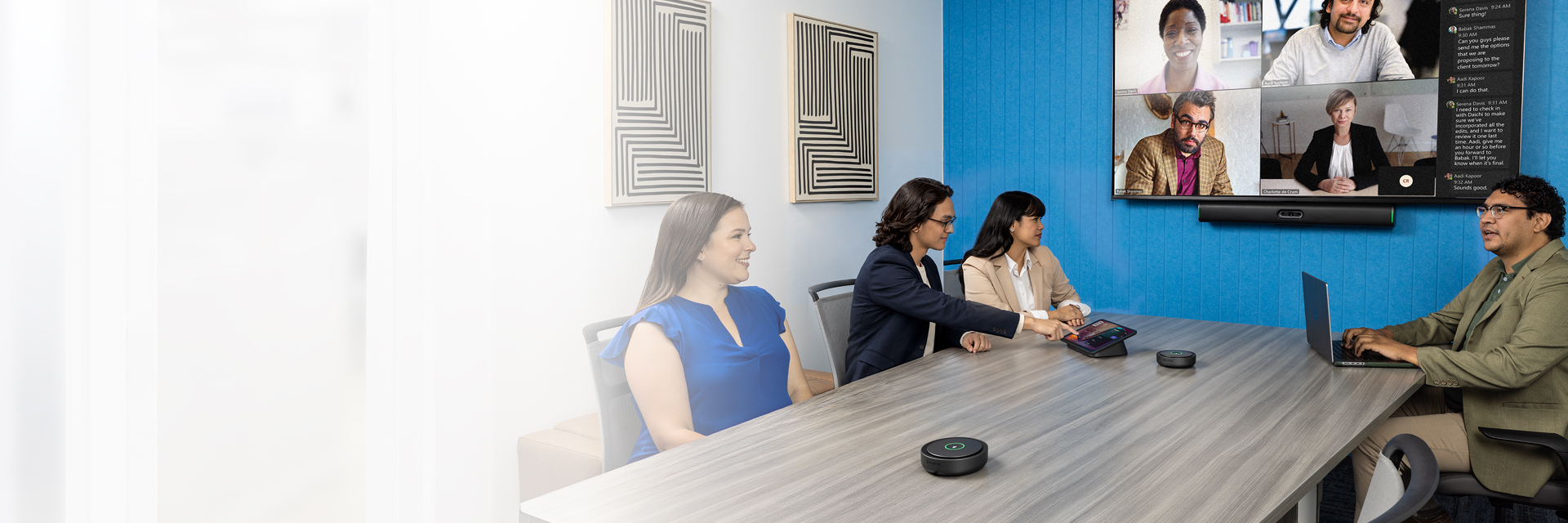

The Q-SYS RoomSuite Collaboration Bar and expansion devices provide a scalable AV solution for standard small-to-large meeting spaces. This Windows-based solution features built-in audio, video, and supports Microsoft Teams Rooms and bring-your-own-meeting conferencing. Includes a touch panel for control and allows for optional table microphones for extended audio coverage.
简化的硬件

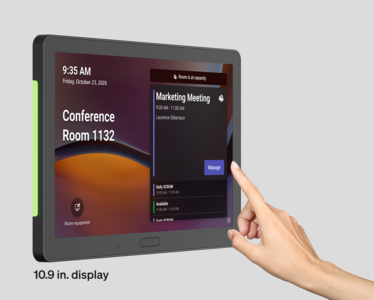

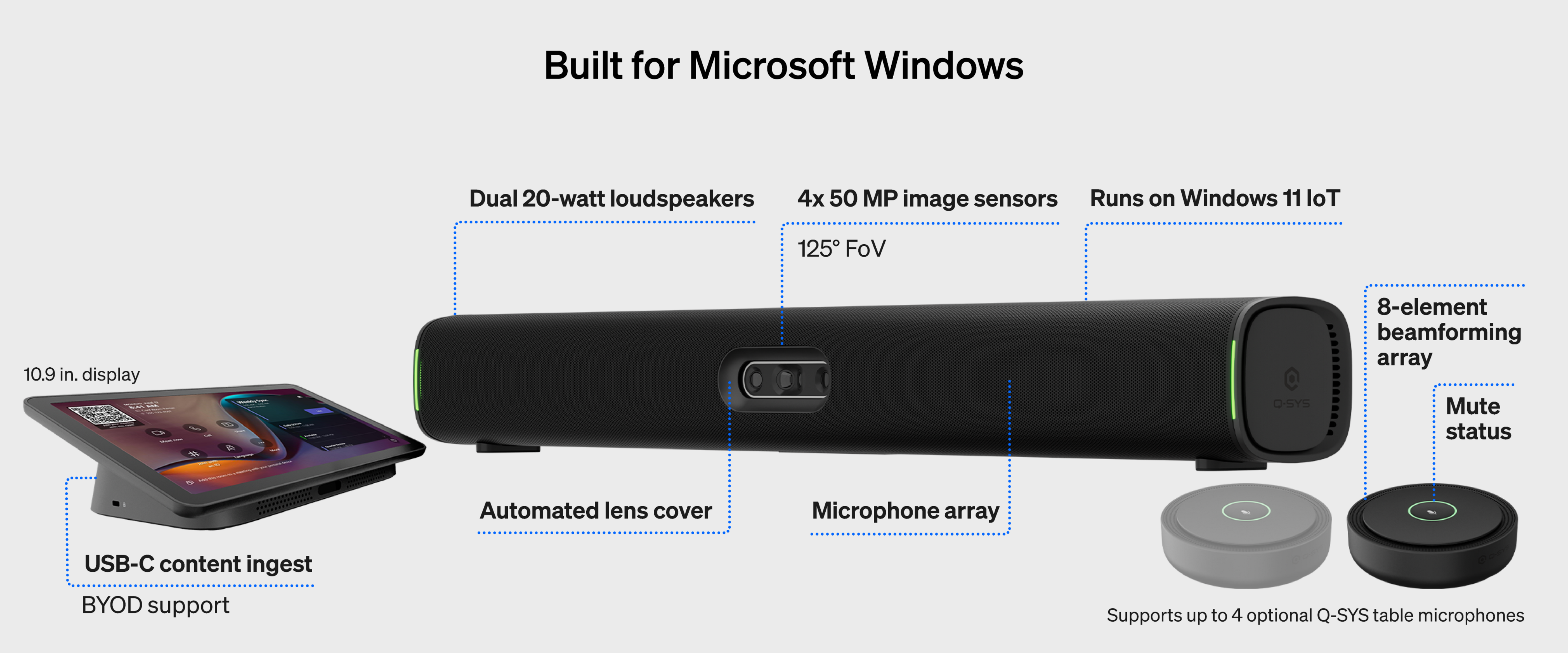

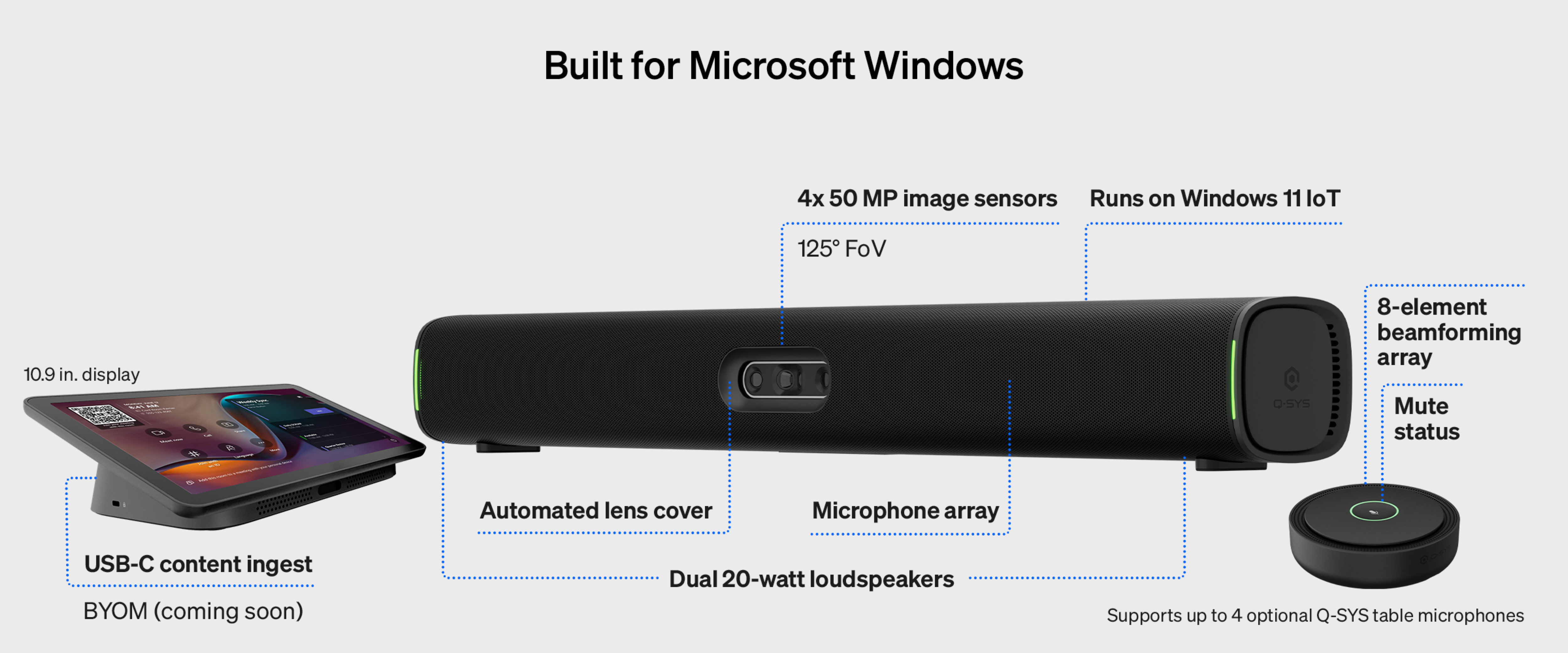

The Q-SYS RoomSuite Collaboration Bar is an integrated Windows-based device with a built-in compute. It features four high-resolution cameras, a 16-element microphone array and integrated loudspeakers. The included 10.9-inch touchscreen controller simplifies meeting management and AV bridging, while up to four optional table microphones provide flexible audio coverage with mute sync.
Simplified Configuration

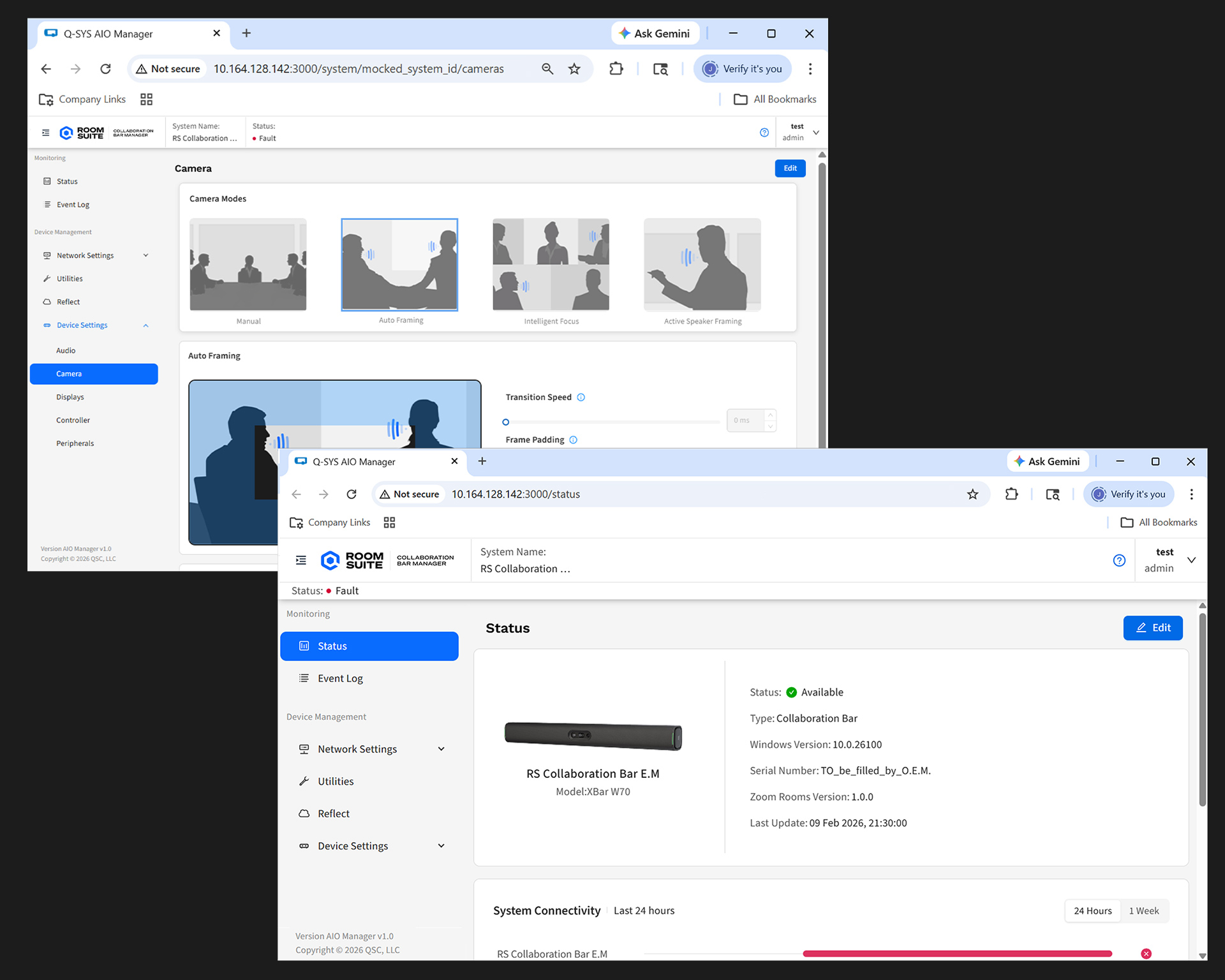

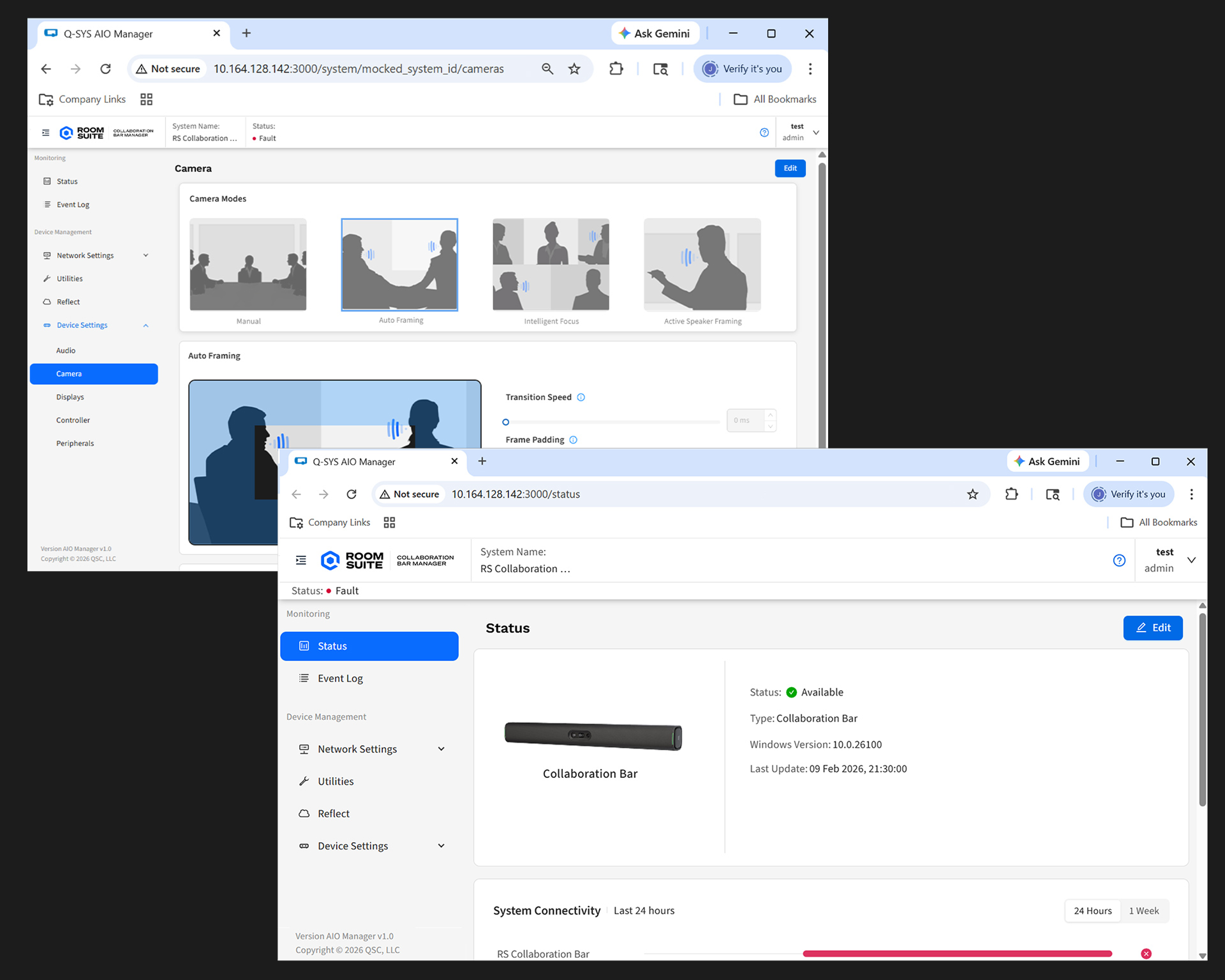

The Q-SYS RoomSuite Collaboration Bar was designed to be up and running in minutes (without Q-SYS Designer Software). Devices are plug-and-play, providing integrated meeting and device control plus room-ready audio that greatly reduces setup time. The web-based configuration tool lets users make additional changes to ensure the best performance in any space.
Simplified Registration to Q-SYS Reflect

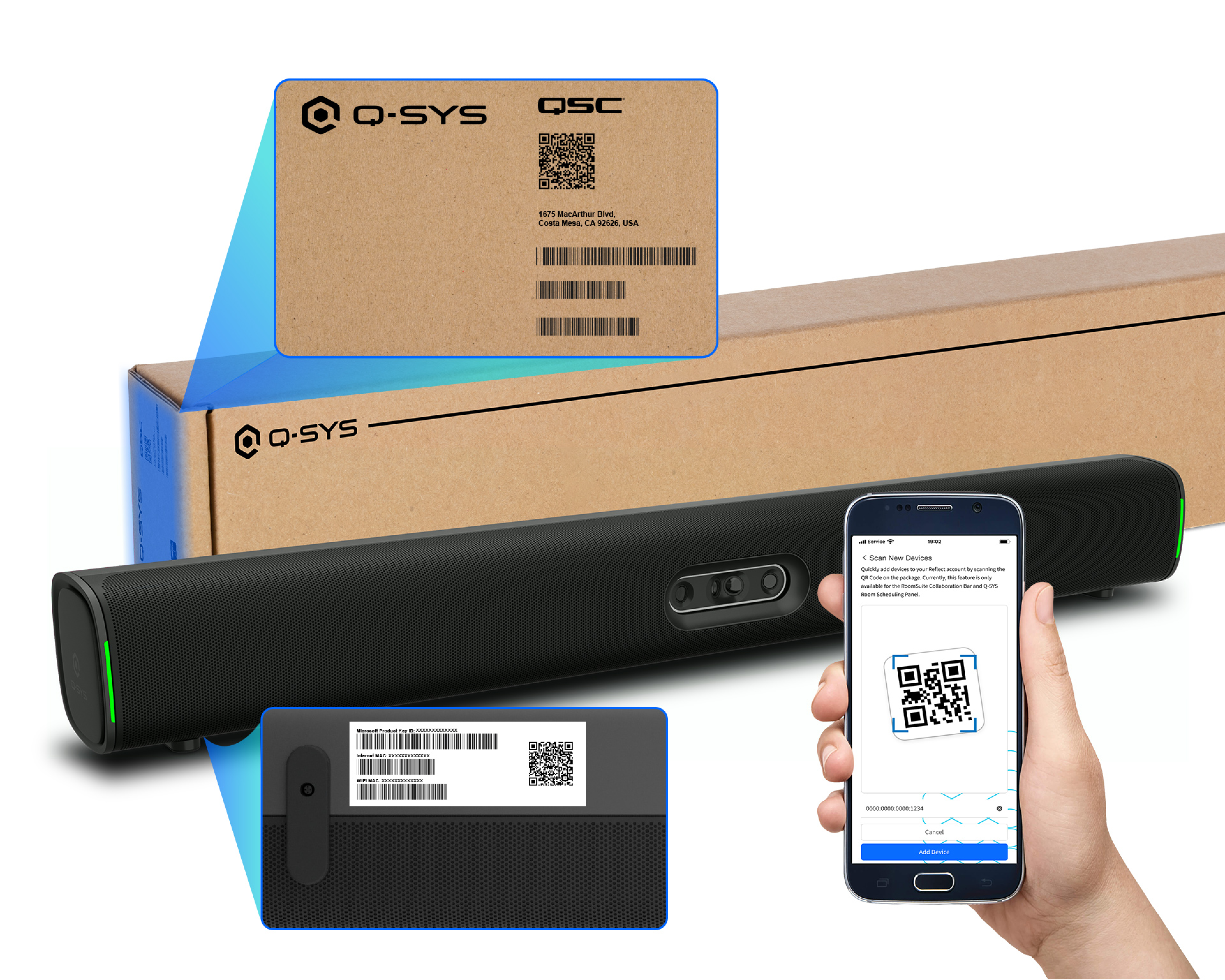

A few simple steps connects your Q-SYS RoomSuite Collaboration Bar to systemwide remote monitoring and management via Q-SYS Reflect. Just scan the QR code located on the exterior packaging or bar to access a web-based interface for easy configuration.
Simplified System-wide Management

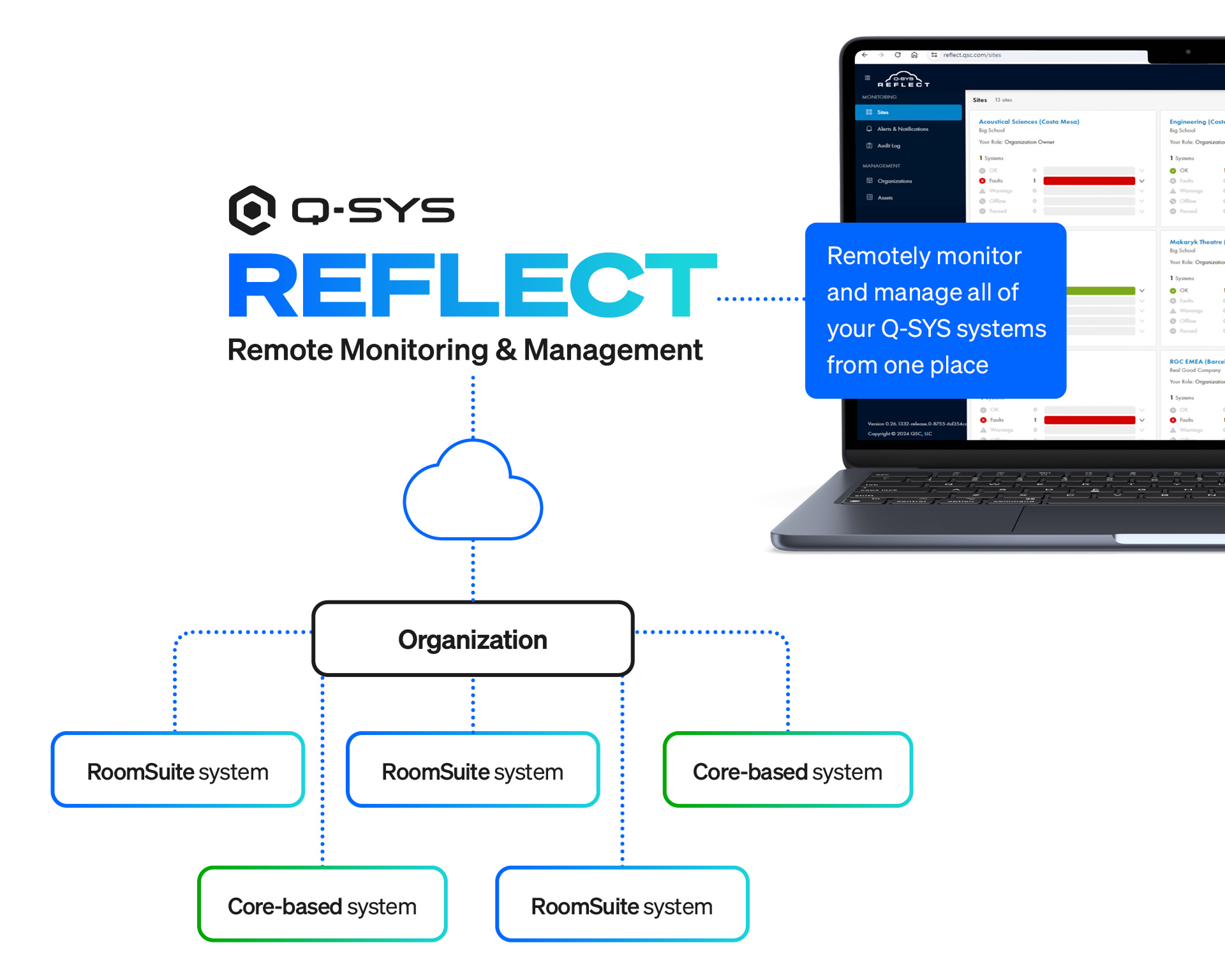

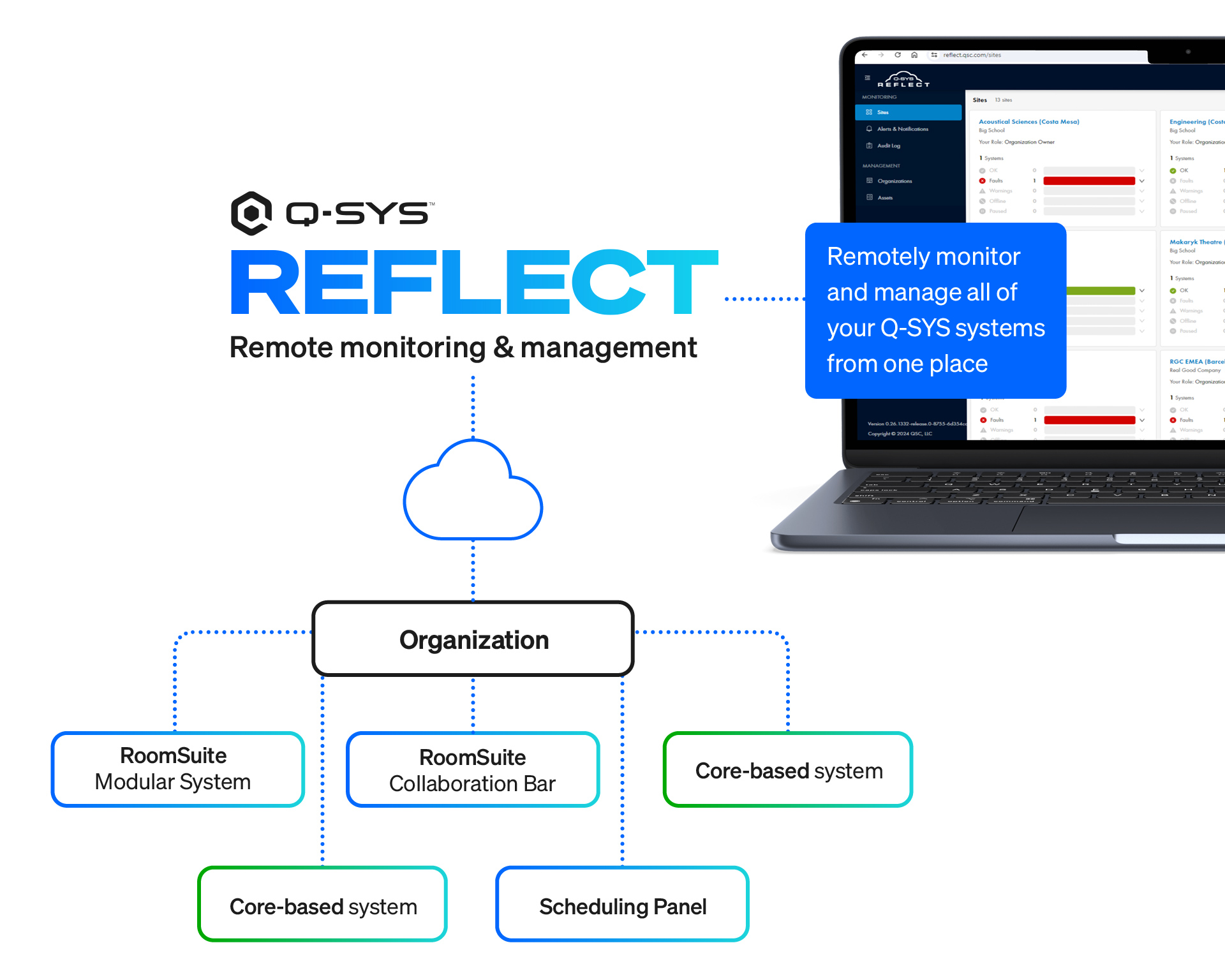

The Q-SYS RoomSuite Collaboration Bar connects to Q-SYS Reflect, a cloud-based monitoring and management tool that ties together every Q-SYS system across your high-performance workplace, and communal areas, providing system administrators with real-time actions and insights. Q-SYS Reflect Plus enables quicker scalability using presets, an easy way to save and deploy configurations of the Q-SYS RoomSuite Collaboration Bar at scale.
AI-Driven Features

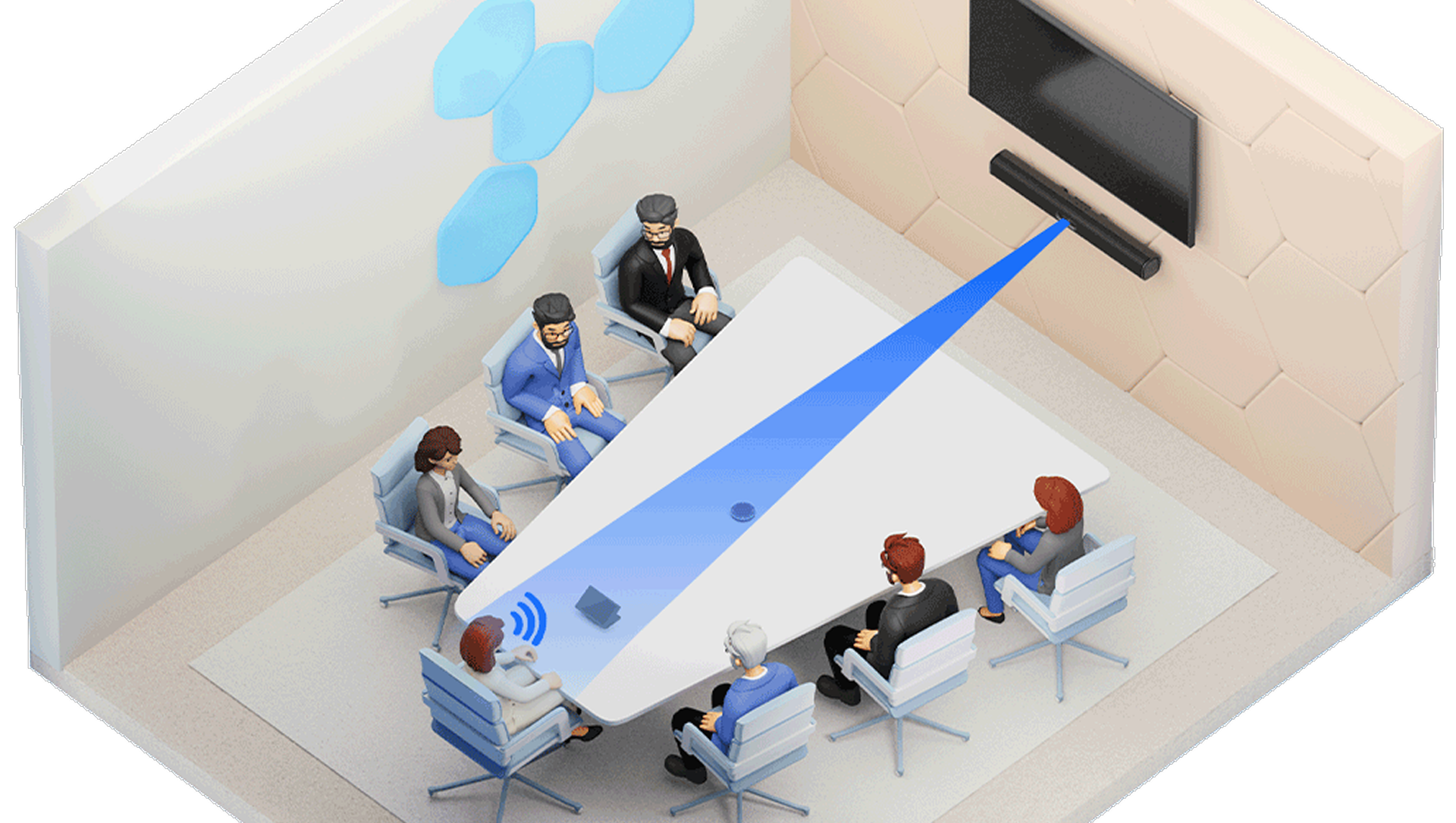

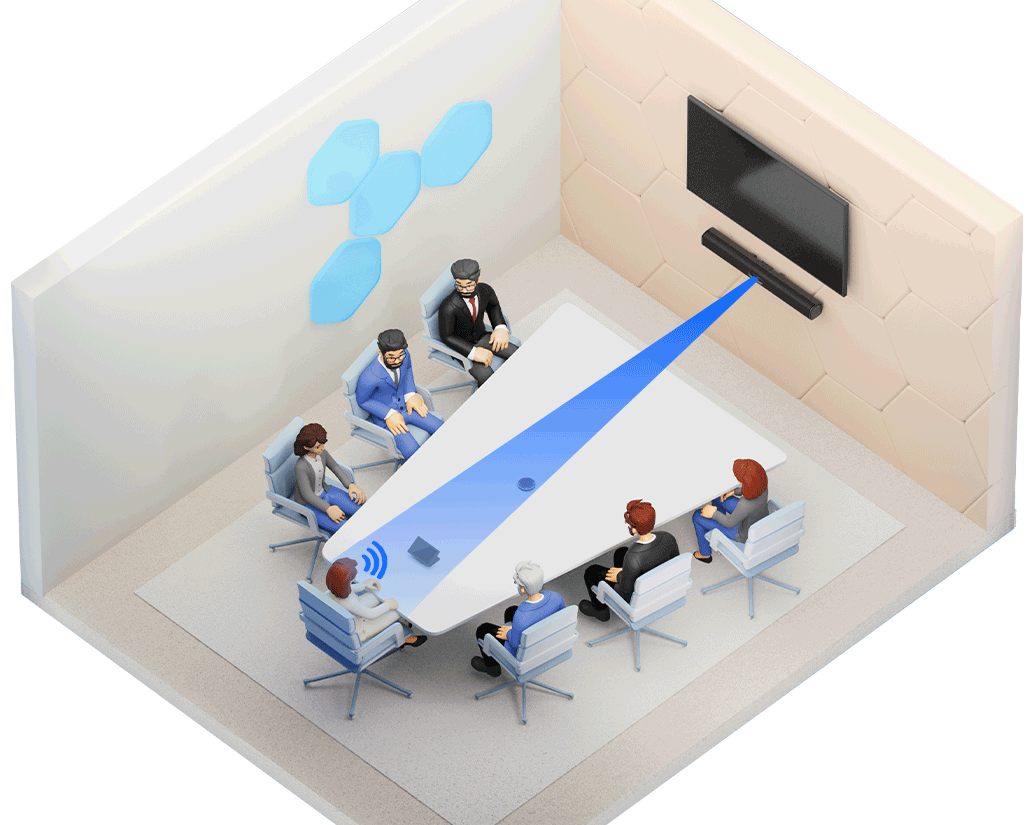

主动聚焦讲话人
Camera positioning is dynamic and triggered by audio positioning data

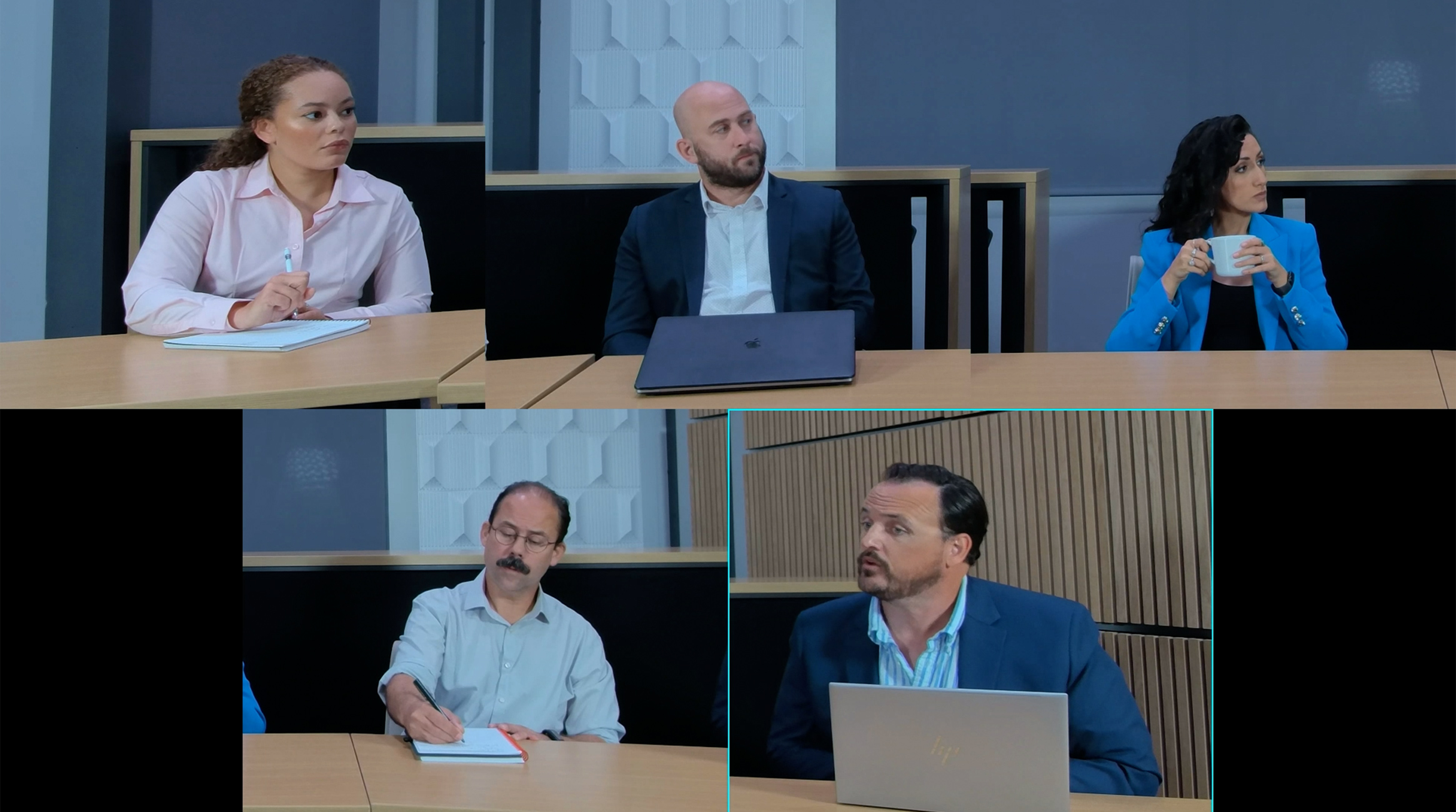

平移视图
Frames up to eight participants

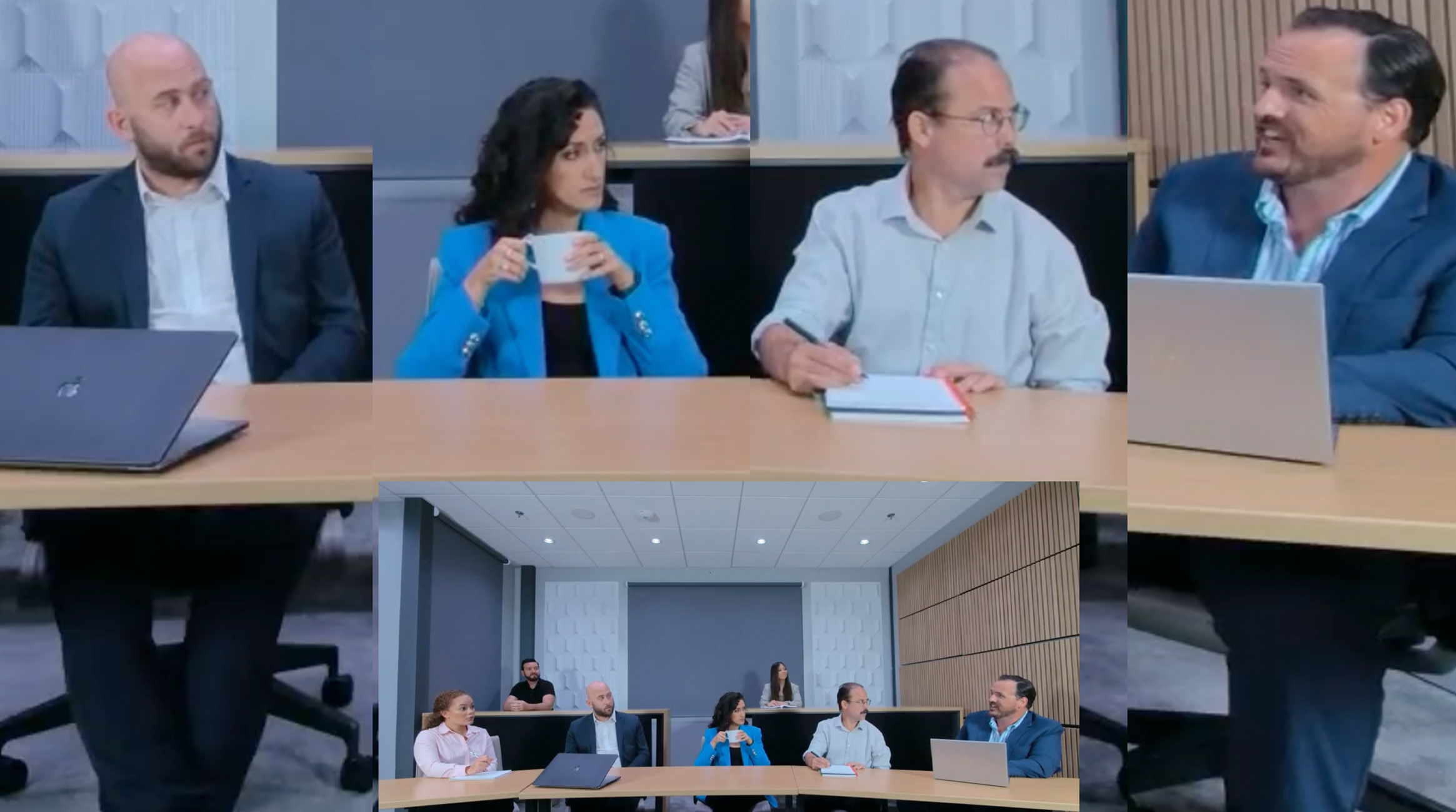

Active Speaker Tiling
Tiles last four active speakers with optional room view

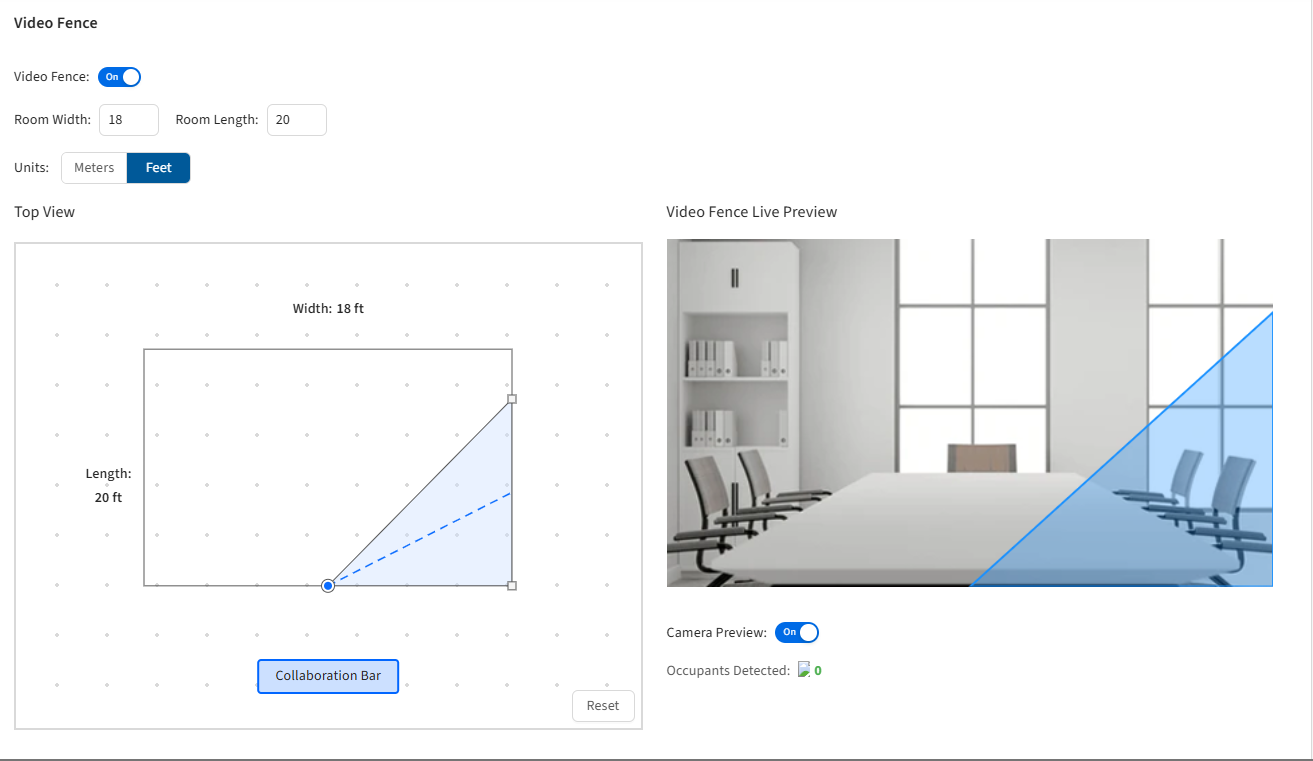

Video Fence
Define camera field of view and set exclusion zones
系统组件
资源
| 标题 | |
|

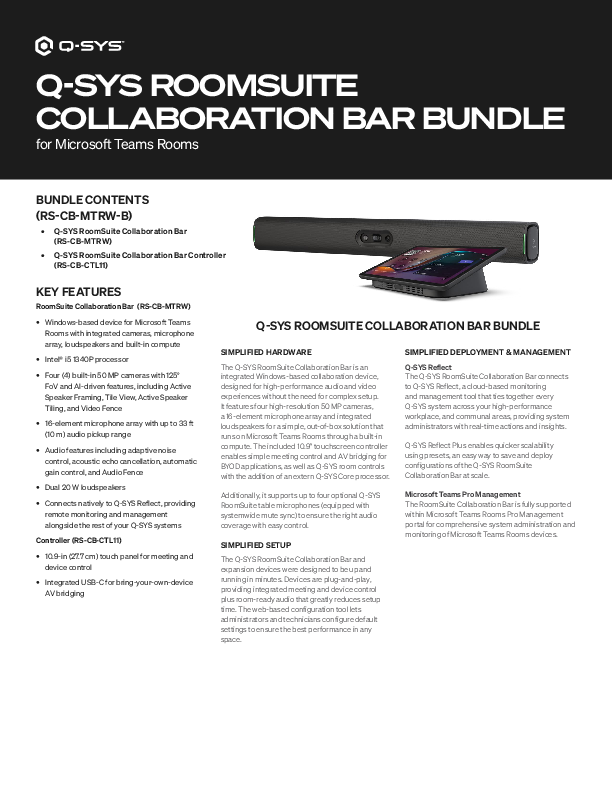

Q-SYS RoomSuite Collaboration Bar Bundle specifications sheet
Specifications sheet for the Q-SYS RoomSuite Collaboration Bar Bundle for Microsoft Teams Rooms
|
|

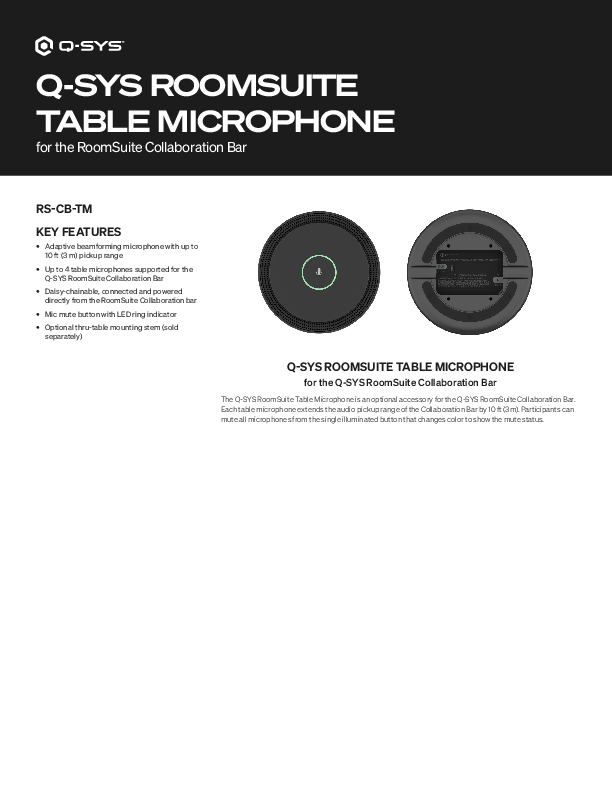

Q-SYS RoomSuite Table Microphone for the RoomSuite Collaboration Bar specifications sheet
Specifications sheet for the Q-SYS RoomSuite Table Microphone for the RoomSuite Collaboration Bar
|
| 标题 |
| Model | Q-SYS RoomSuite Collaboration Bar | |||
| 详细参数 | ||||
| Product type | Collaboration bar with integrated cameras, loudspeakers and microphone array | |||
| Operating system | Windows 11 IoT Enterprise | |||
| UC Application | Microsoft Teams Rooms | |||
| Compute & performance | ||||
| 处理器 | Intel® i5 1340P | |||
| Memory | 16 GB RAM | |||
| Storage | 256 GB | |||
| Graphics | Intel® UHD Graphics (12th Gen) | |||
| Camera | ||||
| Camera quantity | 2x wide-angle, 2x telephoto | |||
| 分辨率 | 4x 50 MP image sensors | |||
| Zoom | 8x hybrid zoom | |||
| Privacy | Automatic lens shutter | |||
| Field of view | ||||
| Camera | 水平 | Vertical | Diagonal | |
| Wide camera | 125° | 50° | 130° | |
| Telephoto camera | 42° | 32° | 52° | |
| 音频 | ||||
| 配置 | Stereo (2.0) | |||
| Power Output | 20 Watt + 20 Watt | |||
| 频段 | 80 Hz – 20 kHz | |||
| 麦克风 | ||||
| Microphone array | 16-element microphone array | |||
| Pickup range | Up to 33 ft (10 m) | |||
| 频段 | 20 Hz – 16 kHz | |||
| Content sharing | ||||
| Microsoft Teams (In-meeting) | 1080p @ 30 fps | |||
| USB-C local sharing | 1080p @ 30 fps | |||
| HDMI local sharing | 1080p @ 30 fps | |||
| 物理 | ||||
| Dimensions (L x W x H) | 33.1 x 4.6 x 4.1 in (840.6 x 117.6 x 104 mm) | |||
| 重量 | 11 lbs (5.0 kg) | |||
| 环境与安全 | ||||
| 存储温度范围 | -4° to 140°F (-20 to 60°C) | |||
| 存储湿度范围 | 10% to 90% | |||
| 工作温度范围 | 32° to 104°F (0° to 40°C) | |||
| 工作湿度范围 | 10% to 90% | |||
| Model | Q-SYS RoomSuite Collaboration Bar UC Controller | |||
| 详细参数 | ||||
| Screen size | 10.95 in (278 mm) | |||
| 分辨率 | 1920 x 1080 | |||
| Refresh rate | 60 Hz | |||
| 亮度 | 250 nits (minimum) – 300 nits (maximum) | |||
| Backlight | ELED | |||
| Touch & sensors | ||||
| Touch type | Capacitive | |||
| Surface | Anti-glare, anti-fingerprint | |||
| Motion sensor | PIR (auto wake-up) | |||
| 安装方式 | ||||
| Wall mount | Included | |||
| 180° swivel mount | Optional | |||
| Content sharing | ||||
| USB-C local sharing | 1080p @ 30 fps | |||
| 物理 | ||||
| Dimensions (L x W x H) | 10.6 x 6.7 x 3.4 in (269.2 x 170.2 x 86.4 mm) | |||
| 重量 | 2.6 lbs (1.2 kg) | |||
| 环境与安全 | ||||
| 存储温度范围 | -4° to 140°F (-20 to 60°C) | |||
| 存储湿度范围 | 10% to 90% | |||
| 工作温度范围 | 32° to 104°F (0° to 40°C) | |||
| 工作湿度范围 | 10% to 90% | |||
| Model | Q-SYS Table Microphone for the RoomSuite Collaboration Bar (RS-CB-TM) | ||
| 音频 | |||
| 麦克风类型 | Adaptive beamforming | ||
| 拾音范围 | Up to 3m radius | ||
| 麦克风元件 | 8x MEMS | ||
| 连接能力 | Ethernet, compatible only with Q-SYS RoomSuite Collaboration Bar | ||
| 频率响应 | 100 Hz - 10 kHz, +/-3 dB | ||
| 采样率 | 48KHz | ||
| 比特级数（比特位） | 16bit | ||
| 灵敏度 | -37dBFS | ||
| 最大峰值声压级(1 kHz @ 1% THD) | 128dB | ||
| 动态范围 | 99dB | ||
| 信噪比 | 65dB(A) | ||
| 本底噪声 | 29dB(A) | ||
| 功率 | |||
| 功率要求： | PoE Type 1 Class 2 (daisy-chainable up to 4 total table microphones) | ||
| 功耗 | <3 W | ||
| 连接器类型 | RJ-45 | ||
| 一般规格 | |||
| 尺寸 | 4.75 x 1.375 in (121 x 35 mm) | ||
| 重量 | 1.5磅（0.68千克） | ||
| 包括的配件 | CAT6 cable (10 ft / 3 m) | ||
| 可选附件 | Thru-table mounting stem | ||
