VSA-100

Q-SYS VisionSuite AI加速器

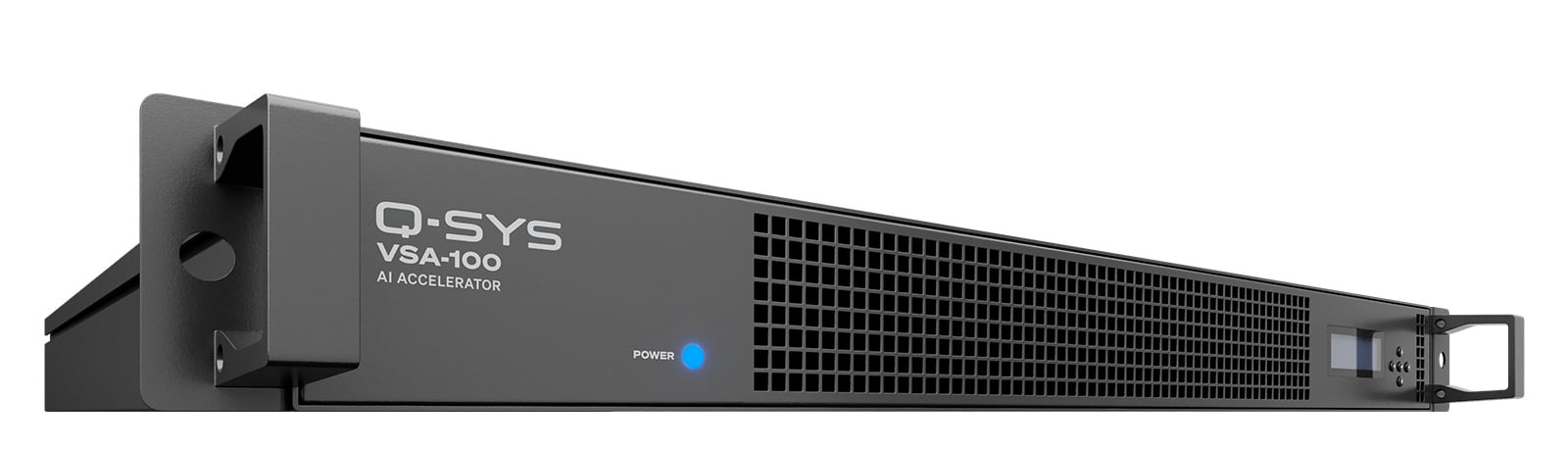

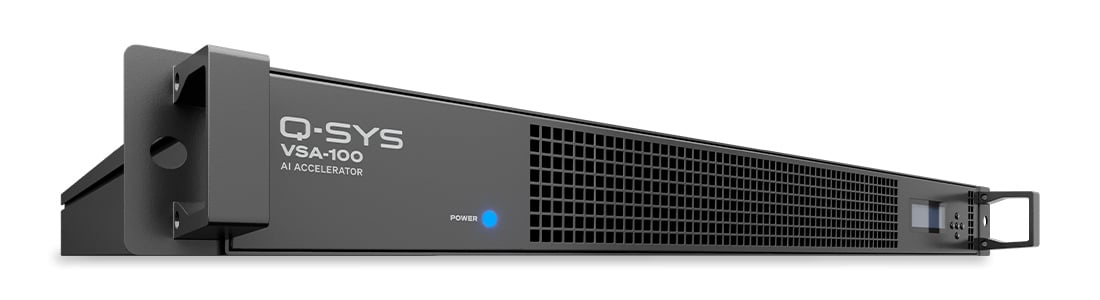

Hero image of Q-SYS VSA-100

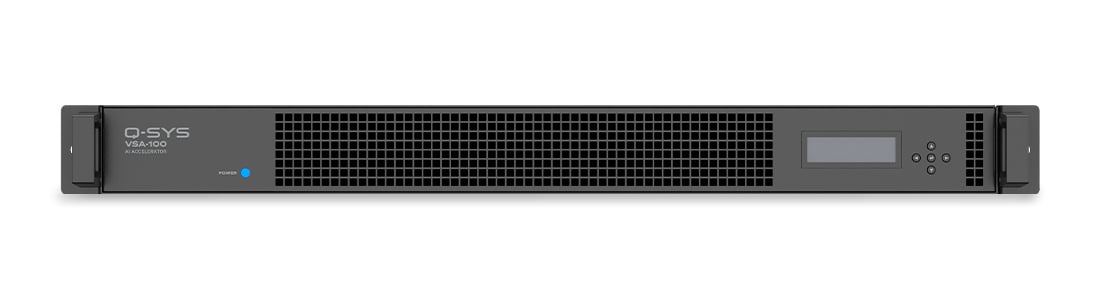

Front image of Q-SYS VSA-100
Rear image of Q-SYS VSA-100

The VSA-100 is an AI accelerator that combines computer vision-based scene analysis with Q-SYS dynamic audio-based camera switching and framing to deliver best-in-class presenter tracking and active speaker framing. The result is a more natural and inclusive experience for in-room and remote participants alike. In addition, this pairing lets you take further advantage of the Q-SYS control engine to create richer experiences with holistic room automation for each unique space.

功能和优点

  • Speaker Spotlight technology: The active speaker’s voice drives camera framing without the need for presets, while voice activity detection protects against false audio triggers.
  • Presenter Spotlight technology: Advanced computer vision drives full-body presenter tracking.
  • Computer vision models analyze full-body characteristics to create unique digital identifiers, enabling full room automations.
  • Integrates with Q-SYS using an Ethernet connection and without affecting the video signal chain.
  • Design, configure, calibrate, and commission all through VisionSuite Designer software, an easy-to-use, native tool within Q-SYS Designer.
  • Supported by Q-SYS NC Series network PTZ cameras
    • Presentation Space Tracking: NC-12x80 / NC-20x60
    • Conductor Camera: NC-12x80 / NC-20x60 / NC-110
  • Static View: Any Q-SYS Camera (Does not require a channel of analytics)
  • 1RU外形规格

应用图

（点击图片可查看大图）

规格

Model VSA-100
Supported Q-SYS Cameras Presentation Space Tracking: NC-12x80, NC-20x60
Conductor Camera: NC-12x80, NC-20x60, NC-110
Static View: Any Q-SYS Camera (no analytics channel required)
Max Number of Q-SYS Cameras 16 (2 Presenter Spotlight / room automation + 14 Speaker Spotlight)
电源 500 W
Dimensions (with rack ears and handles) 21.3 x 19.0 x 1.73 in (540.5 x 482.0 x 44.0 mm)
Storage Temperature Range -40°C to +85°C (-40°F to 185°F)
工作温度范围 0°C to 40°C (32°F to 104°F)
Storage Humidity Range 10% to 95% @ 40°C
Operating Humidity Range 10% to 95% @ 40°C
监管合规 FCC 47 CFR Part 15 Subpart B、Canada ICES-003、EN 55032、EN 55035、EU RoHS指令2011/65/EU、WEEE指令2012/19/EU、REACH、中国RoHS GB/T26572、RCM、IEC/EN/UL 62368-1
